CMP series | Coaxial Multi Purpose Speakers

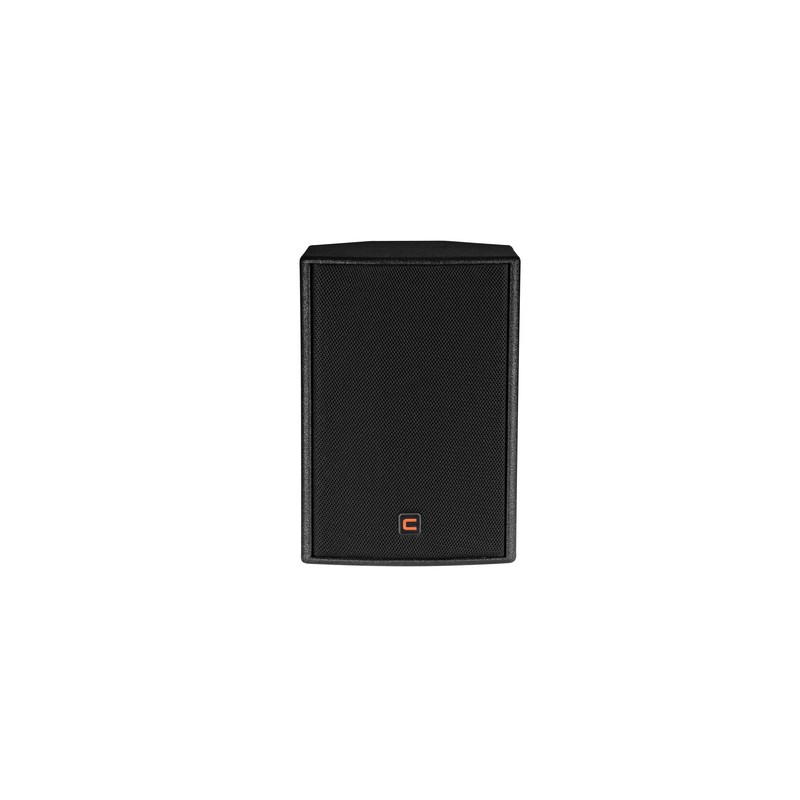

CMP10

Share this:

Multi Purpose Speakers, Rental Company Money Maker

Real 300W RMS power capacity (8 hours pink noise)
Natural sound and incredible holographic reproduction
Optimized for smooth frequency response in and out axis
Premium custom coaxial driver based on IsoRay technology
Next generation HSP Annular Ring Radiator HF
Conical 90° HF Horn pattern
Outdoor grade Baltic birch plywood cabinet
Touring grade Rubberized PolyUrea black coating
Monitor angle and integrated rigging

Multi Purpose Speakers, Rental Company Money Maker

Real 300W RMS power capacity (8 hours pink noise)
Natural sound and incredible holographic reproduction
Optimized for smooth frequency response in and out axis
Premium custom coaxial driver based on IsoRay technology
Next generation HSP Annular Ring Radiator HF
Conical 90° HF Horn pattern
Outdoor grade Baltic birch plywood cabinet
Touring grade Rubberized PolyUrea black coating
Monitor angle and integrated rigging

Speaker type Coaxial Multi-purpose full range
Power Handling (AES Standard) 300W RMS / 1200W Peak
Nominal impedance 8 ohms
Average sensitivity 97dB / 1W / 1m
Maximum SPL (calculated) 122 dB RMS / 128dB Peak
Frequency response (-6dB no preset) 78~22000Hz
Nominal directivity (-6dB) 90° Conical
Cabinet material Exterior grade Baltic Birch Plywood
Cabinet finish Ruberrized PolyUrea Black coating, Integral Airnet fabric on Front grill
Floor monitor use Yes (symetrical)
Flying hardware 7 M8 points + 36 positions Aluminum Yoke plate
Mounting hardware Ø35mm adapter (optional)
LF 10" coaxial CELTO Acoustique 10CX300
Woofer Chassis Die Cast Aluminum
Woofer Voice coil diameter 2.5" / 65mm
HF CELTO Acoustique ACD40 (in coaxial mounting)
HF RMS power (AES standard) 80W above 1.5kHz
HF Exit 1" / 25mm
HF Voice coil diameter 1.7" / 44mm
HF Diaphragm HSP Annular Ring Radiator
Crossover 1.5kHz 2-way passive network
Connectors Genuine NEUTRIK, 2pcs Speakon NL4MP with switch for 1+/-1 or 2+/2- input
Speaker size (HxWxD) 306x440x298 mm
Speaker Weight 15kg
Shipping information 18.6kg 410x570x410 mm
Accessories CMP10-YOKE CMP10-SBAG (padded cover bag) | CPC-70 (pole bar with crank) | CCA-MA (mounting adapter)

CMP10 loudspeaker system is suitable for near field main PA reinforcement with subwoofer, portable system or permanent installation, monitor on stages, and delay fill.
Suitable for:

  • FoH
  • Multi-functional room
  • Auditorium and Theater
  • Nightclub
  • Pub
  • Bar
  • Commercial announcements

CELTO_CMP10_A0_CAD_WEB.pdf
CELTO_CMP10_A0_CAD_WEB.dwg
