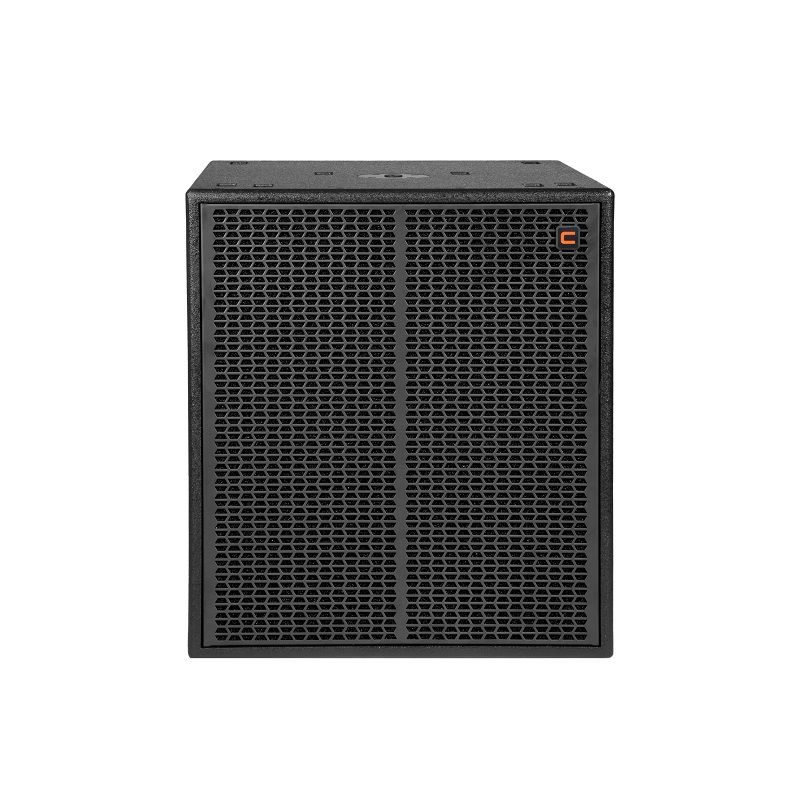

HIGH PERFORMANCE SUBWOOFER
Real 1300W RMS power capacity
Clean and deep reproduction
Premium custom high excursion woofer
Heavy braced, vibration free birch plywood cabinet
Touring grade gloss-free black painting
| Power Handling (AES Standard) | 1300W RMS / 5200W Peak |
| Nominal impedance | 8 ohms |
| Frequency response (-6dB half space, no EQ) | 34~1500Hz |
| Average Sensitivity | 97dB/W/m (40~150Hz) |
| Maximum Calculated SPL @ 1m | 128dB RMS / 134dB Peak |
| Nominal Directivity (-6dB) | Omidirectional in usable range |
| Recommended low cut filter | 30Hz 24dB/oct |
| Low Frequency driver | Custom CELTO Acoustique 18″ with Ferrite magnet, 4” In/Out Voice coil |
| Crossover | No, only use in active mode with external electronic crossover |
| Flying hardware | No |
| Connectors | 2x NEUTRIK Speakon® NL4MP (1+/1- Input & Link, 2+/2- Link) |
| Pole mount | 20mm thread top hat (2pcs) |
| Cabinet | CNC made with tongue and grove assembly, 18mm Outdoor grade birch plywood |
| Finish | Black Textured Waterborne Coating | PU foam behind front grill |
| Size (WxHxD) | 570x632x650mm net, 695x745x760mm gross |
| Weight | 44kg net, 51kg gross |
CSW118 subwoofer is suitable for bass reinforcement for main PA systems,
touring or permanent installations for small to large stages, indoor or outdoor live performances.
Suitable for:
CELTO_CSW118_A0_CAD_WEB.pdf
CELTO_CSW118_A0_CAD_WEB.dwg
