Real 1200W RMS power capacity
Premium 18” Neodymium driver with ±11mm linear Xmax
Triple forced cooling system for low power compression
Heavy braced cabinet for vibration free dynamic response
Fully integrated rigging for floor stacking and flying
Touring grade Rubberized PolyUrea finish
| Power Handling (AES Standard) | 1200W RMS LF / 4800W Peak |
| Nominal impedance | 4 Ohm |
| Frequency response (-6dB with preset) | 33~100Hz |
| Average Sensitivity | 97dB/W/m |
| Maximum Calculated SPL @ 1m | 128dB continuous / 133dB Peak |
| Nominal Directivity (-6dB) | Omni in useable band |
| Recommended low cut filter | High-pass: 30Hz 24dB/oct ,Low-pass: 70~120Hz when used with IWAC210 |
| Low Frequency driver | Custom 18″ CELTO Acoustique 18″ Neodymium magnet, 4” In / Out Voice coil, dual demodulating rings |
| Crossover | No, active mode only |
| Flying hardware | Cable-free Integrated, stack ground and flying |
| Connectors | 2x NEUTRIK Speakon® NL4MP (1+/1- Input & Link, 2+/2- Link) |
| Pole mount | Yes , 20mm thread |
| Cabinet | CNC made with tongue and grove assembly, 15mm premium outdoor grade Baltic birch plywood |
| Finish | Touring grade Rubberized PolyUrea coating |
| Size (WxHxD) | 700x518x745mm |
| Weight | 55kg net, 66kg gross |

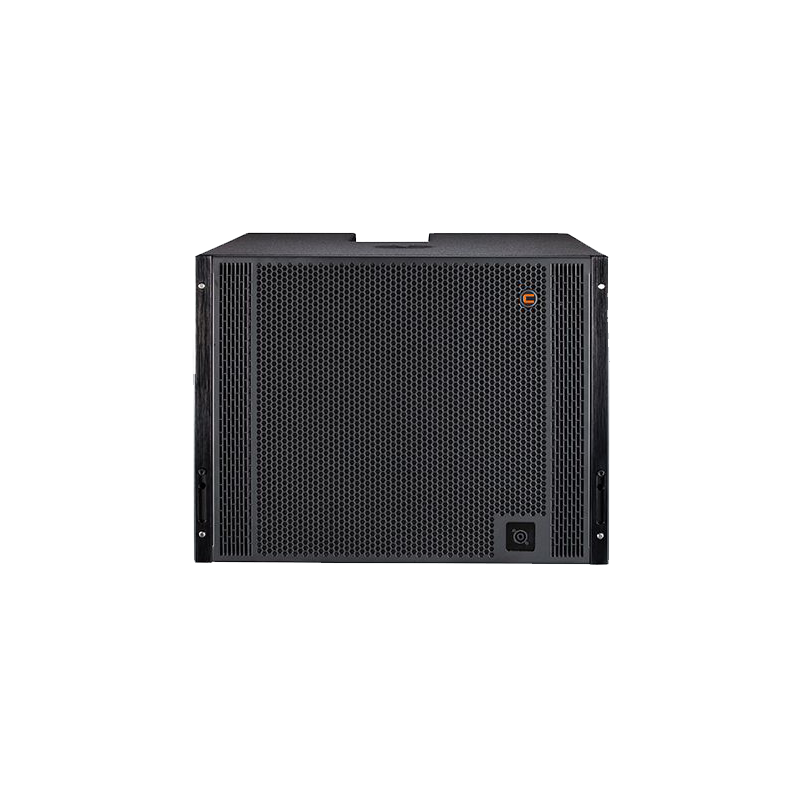

IWAC118S subwoofer is suitable for bass reinforcement for main PA systems, touring or permanent installations for small to large stages, indoor or outdoor live performances.
Suitable for:
IWAC118S_A1_CAD_2D_WEB.pdf
IWAC118S_A1_CAD_2D_WEB.dwg
