Real 400W RMS power capacity
Natural sound and incredible holographic reproduction
Optimized for vocal monitoring in wedge application
Premium custom Neodymium CELTO Driver
Conical 70° HF Horn pattern
Outdoor grade Baltic birch plywood cabinet
Touring grade Rubberized PolyUrea black coating
Dual monitor angle, for Short of Far Monitoring
| Power Handling (AES Standard) | 400W RMS / 1600W Peak |
| Nominal impedance | 8 ohms |
| Frequency response (-6dB half space, no EQ) | 69~18000Hz |
| Manufacturing Consistency tolerance | ±2dB from 300 to 10000Hz |
| Average Sensitivity | 100dB/W/m (wideband 200~16000Hz) |
| Maximum Calculated SPL @ 1m | 126dB RMS / 132dB Peak |
| Nominal Directivity (-6dB) | 70° Conical above 800Hz |
| Recommended low cut filter | 50Hz 24dB/oct in full range mode, 60-120Hz with subwoofer |
| Low Frequency driver | Custom 12" coaxial CELTO driver, Neodymium magnet, 3” In / Out Voice coil |
| High Frequency driver | Custom 1.5” exit CELTO driver, Neodymium magnet, 2.8” Ferrofluid Voice coil, Aquaplased TC4 diaphragm |
| Crossover | Passive mode only – 1400Hz, 12dB/oct on LF, 24dB/oct on HF |
| Flying hardware | 16 M8 points & QuickFly system |
| Connectors | 2x NEUTRIK Speakon® NL4MP (1+/1- Link, 2+/2- Input & Link) |
| Floor Monitor use | Yes, 2 angles |
| Pole mount | 35mm pot |
| Cabinet | CNC made with tongue and grove assembly, 15mm/18mm Finnish WISA birch plywood |
| Finish | Touring grade textured black rubberized coating |
| Size (WxHxD) | 504x427x330mm |
| Weight | 17kg net, 22kg gross |
VCM12 loudspeaker system is suitable for near field main PA reinforcement with subwoofer, portable system or permanent installation, monitor on stages, and delay fill.
Suitable for:

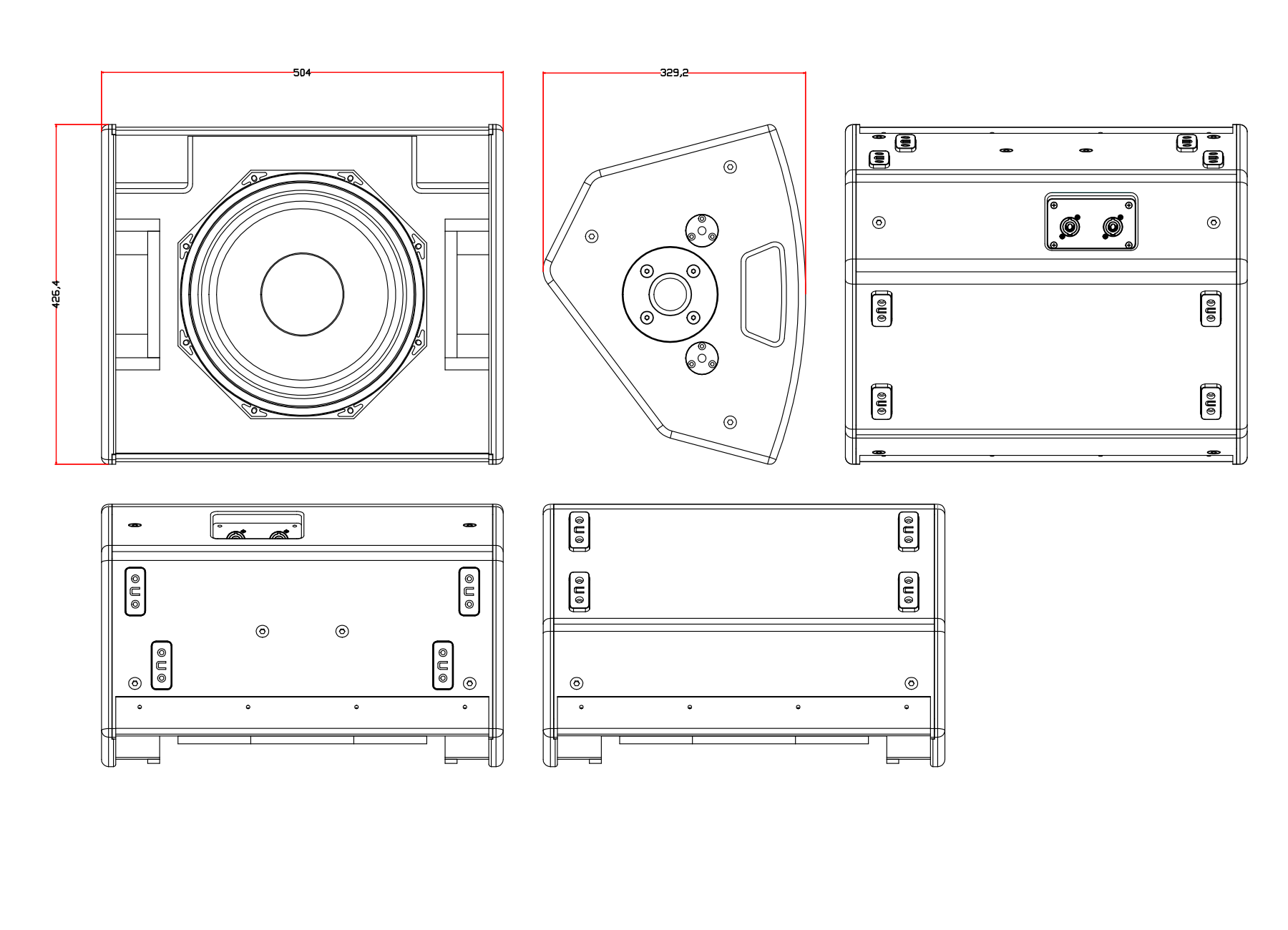

VCM12_A2_CAD_2D_WEB.pdf
VCM12_A2_CAD_2D_WEB.dwg
