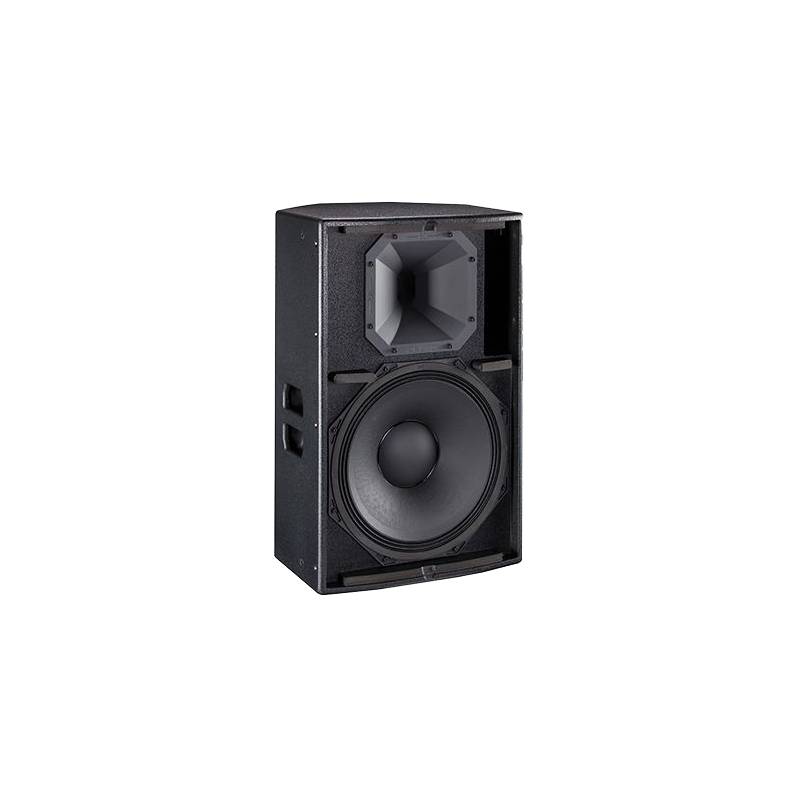

CT15 G3

SMOOTH SOUNDING - EXTENDED BASS - FIRE & FORGET

Real 800W RMS power capacity
Natural sound and incredible holographic reproduction with extended low end
Optimized for smooth frequency response in and out axis
Premium custom CELTO Acoustique Drivers
Proprietary 80ºx50º rotatable 6th order Polynomial horn
Birch plywood cabinet with tongue & groove assembly
Touring grade gloss-free black painting

Speaker type	Multi-purpose full range
Power Handling (AES standard)	800W RMS / 3200W Peak
Nominal impedance	8 ohms
Average sensitivity	98dB / 1W / 1m
Maximum SPL (calculated)	128 dB RMS / 134dB Peak
Frequency response (-6dB no preset)	48~22000Hz
Nominal directivity (-6dB)	80° (H) x 50° (V)
Cabinet material	Outdoor grade Birch Plywood
Cabinet finish	Textured Waterborne Black coating \| Integral Airnet fabric on Front grill
Floor monitor use	Yes (symetrical)
Flying hardware	16 M8 points
Mounting hardware	Ø35mm socket (0° and 10°)
LF	15" CELTO Acoustique 15PF800
Woofer Chassis	Die Cast Aluminum
Woofer Voice coil diameter	3.6" / 91mm
HF	CELTO Acoustique ACD44
HF RMS power (AES standard)	80W above 1.2kHz
HF Exit	1" / 25mm
HF Voice coil diameter	1.7" / 44mm
HF Diaphragm	HSP Annular Ring Radiator
Crossover	1.4kHz 2-way passive network
Connectors	Genuine NEUTRIK, 2pcs Speakon NL4MP
Speaker size (HxWxD)	445x710x414 mm
Speaker Weight	30kg
Shipping information	36kg \| 820x520x545mm
Accessories	CT15G2-YOKE \| CT15-SBAG (padded cover bag) \| CPC-70 (pole bar with crank) \| KTV-BRKT1 (ceiling mounting braket) \| WMBRKT60 (wall mounting braket)

Zoom

CT15 G3 loudspeaker system is suitable for near field main PA reinforcement with or without subwoofer,
portable system or permanent installation, monitor in small stages, and delay fill.

Suitable for:
