CT Gen3 Series | Nearfield Compact Speakers

CT12 G3

Share this:

SMOOTH SOUNDING - MORE FOR LESS - FIRE & FORGET

Real 600W RMS power capacity
Natural sound and incredible holographic reproduction
Optimized for smooth frequency response in and out axis
Premium custom CELTO Acoustique Drivers
Proprietary 80ºx50º rotatable 6th order Polynomial horn
Birch plywood cabinet with tongue & groove assembly
Touring grade gloss-free black painting

SMOOTH SOUNDING - MORE FOR LESS - FIRE & FORGET

Real 600W RMS power capacity
Natural sound and incredible holographic reproduction
Optimized for smooth frequency response in and out axis
Premium custom CELTO Acoustique Drivers
Proprietary 80ºx50º rotatable 6th order Polynomial horn
Birch plywood cabinet with tongue & groove assembly
Touring grade gloss-free black painting

Speaker type Multi-purpose full range
Power Handling (AES standard) 600W RMS / 2400W Peak
Nominal impedance 8 ohms
Average sensitivity 97dB / 1W / 1m
Maximum SPL (calculated) 125 dB RMS / 131dB Peak
Frequency response (-6dB no preset) 50~22000Hz
Nominal directivity (-6dB) 80° (H) x 50° (V)
Cabinet material Outdoor grade Birch Plywood
Cabinet finish Textured Waterborne Black coating | Integral Airnet fabric on Front grill
Floor monitor use Yes (symetrical)
Flying hardware 17 M8 points
Mounting hardware Ø35mm socket (0° and 10°)
LF 12" CELTO Acoustique 12PF600
Woofer Chassis Die Cast Aluminum
Woofer Voice coil diameter 3" / 75mm
HF CELTO Acoustique ACD44
HF RMS power (AES standard) 80W above 1.5kHz
HF Exit 1" / 25mm
HF Voice coil diameter 1.7" / 44mm
HF Diaphragm HSP Annular Ring Radiator
Crossover 1.5kHz 2-way passive network
Connectors Genuine NEUTRIK, 2pcs Speakon NL4MP
Speaker size (HxWxD) 356x620x345 mm
Speaker Weight 23kg
Shipping information 28.5kg | 735x460x440mm
Accessories CT12G2-YOKE | CT12-SBAG (padded cover bag) | CPC-70 (pole bar with crank) | KTV-BRKT1 (ceiling mounting braket) | WMBRKT40 (wall mounting braket)

CT12 G3 loudspeaker system is suitable for near field main PA reinforcement with or without subwoofer, portable system or permanent installation, monitor in small stages, and delay fill.

Suitable for:

  • FoH
  • Multi-functional room
  • Auditorium and Theater
  • Pub
  • Bar
  • Commercial announcements

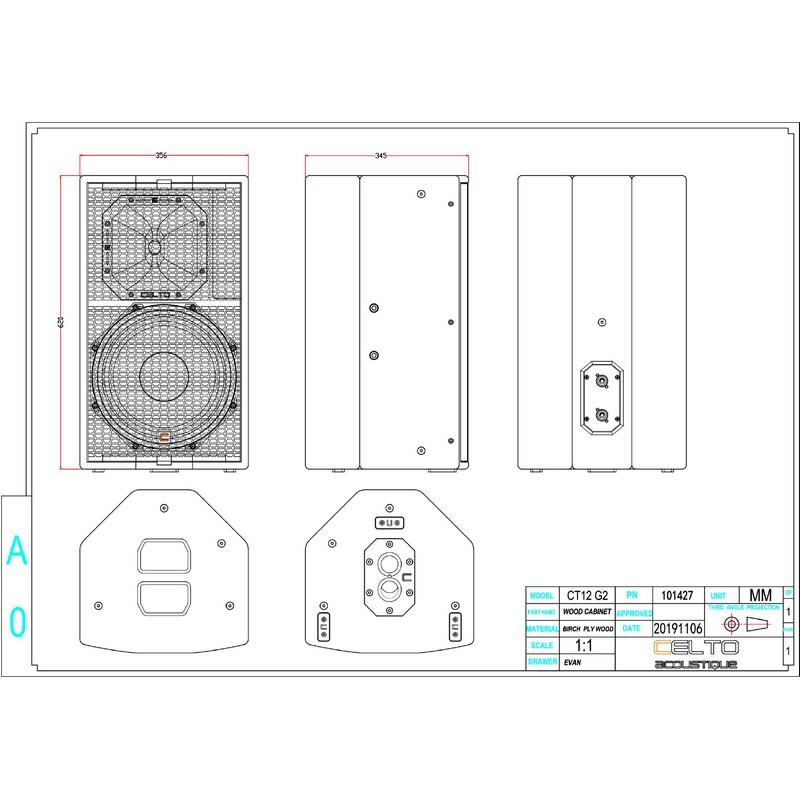

CELTO_CT12G2_A0_CAD_WEB.pdf
CELTO_CT12G2_A0_CAD_WEB.dwg
