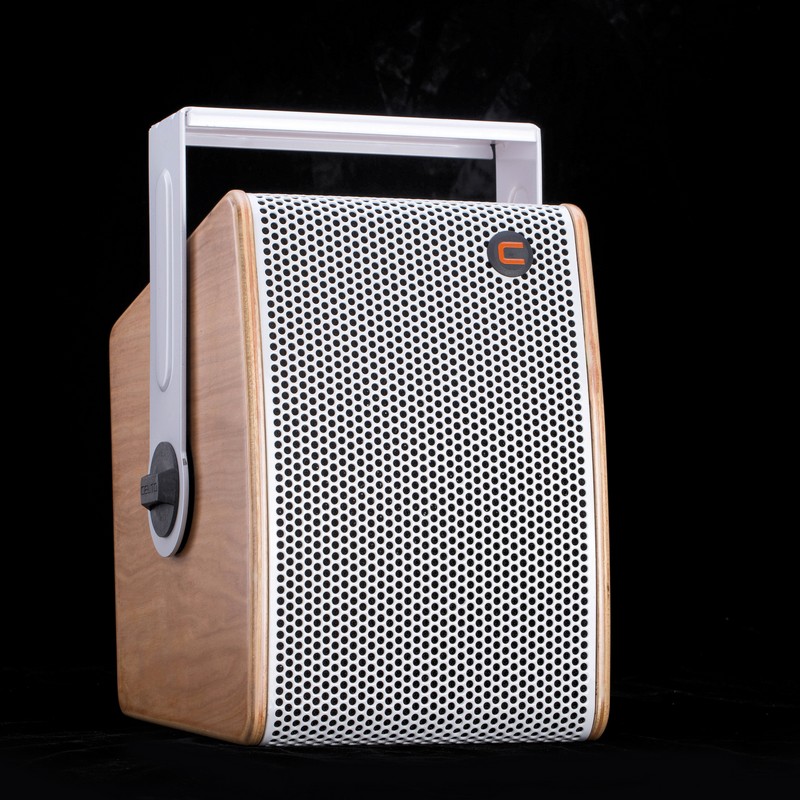

iFIX6

DON'T BE FOOLED BY IT'S SIZE

Real 120W RMS power capacity
Contemporary design available in white, black and natural wood colors
Any RAL color on demand
Fullrange, can be used without subwoofer
Highly dynamic and smooth reproduction
Premium CELTO coaxial driver with compression HF
Shipped with wall mount bracket

Power Handling (AES Standard)	120W RMS / 480W Peak
Nominal impedance	12 ohms
Frequency response (-6dB half space, no EQ)	65~22000Hz
Manufacturing Consistency tolerance	±2dB from 300 to 12000Hz
Average Sensitivity (wideband 200~16000Hz)	90dB/W/m
Calculated Maximum SPL / 1m	111dB continuous / 117dB Peak
Nominal Directivity (-6dB)	85º conical above 800Hz
Recommended low cut filter	30Hz 24dB/oct in full range mode, 60-140Hz with subwoofer
Low Frequency driver	6” Coaxial CELTO Acoustique Ferrite magnet, 1.5” Voice coil
High Frequency driver	0.75” exit (Coaxial) 1.1” Ketone polymer diaphragm
Crossover	Passive mode only 2500Hz, 12dB/oct on LF, 18dB/oct on HF
Flying hardware	Integrated Multi-function Yoke
Connectors	Screw terminals with banana plug
Cabinet	CNC made with tongue and grove assembly 12 mm birch plywood
Finish	Textured Waterborne Coating (Black and White colors) or Varnish finish (Natural and Oak colors)
Size (HxWxD)	260x190x250mm net, 360x350x330mm gross
Weight	5kg net, 7kg gross
