iFIX8

BIG SOUND IN SMALL PACKAGE RIGGING INCLUDED

Real 150W RMS with high-end sound quality
High Efficiency for incredible SPL to Size ratio
Coaxial transducer for unmatched spacial coherence
HF compression driver with Treated Titanium dome
Audiophile grade crossover with Right-Phase topology
Birch plywood cabinet with smooth texture or varnish finish
Multi-functional yoke with dented ring for secured angles
Available in Black, White, Natural and Oak colors

Power handling (AES Standard)	150W RMS / 600W Peak
Nominal impedance	12 ohms
Frequency response (-6dB half space, no EQ)	95~18000Hz
Manufacturing Consistency tolerance	±2dB from 300 to 12000Hz
Average Sensitivity (wideband 200~16000Hz)	94dB/W/m
Calculated Maximum SPL / 1m	116dB RMS / 122dB Peak
Nominal Directivity (-6dB)	80º conical above 1000Hz
Recommended low cut filter	90-130Hz 24dB/oct with subwoofer, Cannot run full range, mandatory subwoofer (iFIX13S or iFIX17S)
Low Frequency driver	8” Coaxial CELTO Acoustique, Ferrite magnet, 2” Voice coil
High Frequency driver	1” exit (Coaxial) 1.7” Treated Titanium diaphragm
Crossover	Passive mode only 2200Hz, 12dB/oct on LF, 18dB/oct on HF

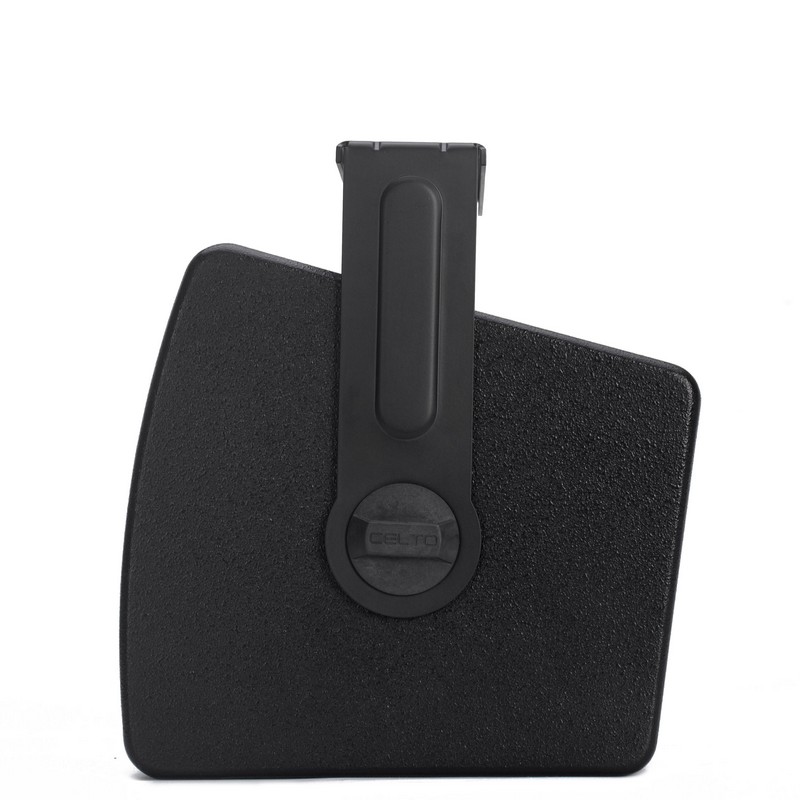

Flying hardware	Integrated Multi-function Yoke
Connectors	Screw terminals with banana plug
Cabinet	CNC made with tongue and grove assembly 15 mm birch plywood
Finish	Textured Waterborne Coating (Black and White colors) or Varnish finish (Natural and Oak colors)
Size (HxWxD)	243x250x250mm net, 340x350x390mm gross
Weight	7kg net, 8,5kg gross
