IsoRay Series | Coaxial Curvature Array

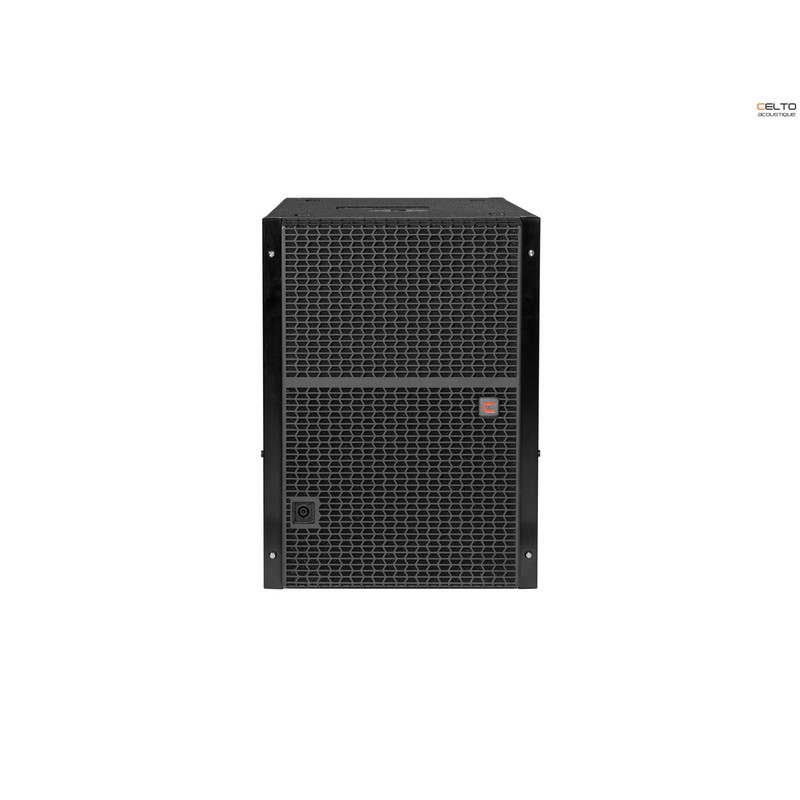

ISORAY 18S

Share this:

PUT IT UP OR DOWN, LEFT OR RIGHT, THE IR18s IS ALWAYS RIGHT

Real 1200W RMS power capacity
Premium 18” Neodymium driver with ±11mm linear Xmax
Triple forced cooling system for low power compression
Heavy braced cabinet for vibration free dynamic response
Fully integrated rigging for floor stacking and flying
Touring grade Ruberrized PolyUrea black paint finish

PUT IT UP OR DOWN, LEFT OR RIGHT, THE IR18s IS ALWAYS RIGHT

Real 1200W RMS power capacity
Premium 18” Neodymium driver with ±11mm linear Xmax
Triple forced cooling system for low power compression
Heavy braced cabinet for vibration free dynamic response
Fully integrated rigging for floor stacking and flying
Touring grade Ruberrized PolyUrea black paint finish

Speaker type Flyable line source sub woofer
Power Handling (AES standard) 1200W RMS / 4800W Peak
Nominal impedance 8 ohms
Average sensitivity 97dB / 1W / 1m
Maximum SPL (calculated) 128 dB RMS / 134dB Peak
Frequency response (-6dB with preset) 33~100Hz
Nominal directivity (-6dB) Omni in usable range. Cardioid preset
Cabinet material Heavily braced Outdoor grade Baltic Birch Plywood
Cabinet finish Ruberrized PolyUrea Black coating Acoustic PU foam behind Front grill
Floor monitor use N/A
Flying hardware Fully integrated, cable-free rigging, bi-directional flying ability
Mounting hardware 1pc M20 thread socket
LF 18" CELTO Acoustique 18EXN1200
Woofer Chassis Die Cast Aluminum
Woofer Voice coil diameter 4" / 100mm long throw
Crossover No, active mode only
Speaker size (HxWxD) 585x420x780 mm
Speaker Weight 45kg
Shipping information 52kg, 730x540x900 mm
Accessories CCA118S-FR (large flying frame) | CCA-IFR (Intermediary flying frame) | CCA118S-WB (metal wheelboard) | CCA118S-SBAG (padded cover bag) | CPC-70 (pole bar with crank) | SUBWHKIT100C (castor wheel kit)

IsoRay18s subwoofer is suitable for bass reinforcement for main PA systems, touring or permanent installations for small to large stages, indoor or outdoor live performances.

Suitable for:

  • FOH
  • Live show
  • Multi-functional room
  • Auditorium and Theatre
  • Sport center
  • House of worship

IsoRay18S_Prelim-(2).pdf
CELTO_AN11_IR18s+IR10+CPC70+MA+FYOKE_20191022.pdf
