IsoRay Series | Coaxial Curvature Array

ISORAY 10+

Share this:

GAME CHANGER, ALL IN ONE FULL RANGE COAXIAL LINE SOURCE

10'' Ultra compact Line source
Real 450W RMS power capacity (8hours Pink noise)
Tiny A3 paper size format
Unmatched Size/SPL ratio
Only 15kg / 33lbs
16 ohm (passive) for high power density
FIR + DynEQ Presets
Up to 24 speakers per array with 12 times safety
Touring grade Ruberrized PolyUrea black paint finish

GAME CHANGER, ALL IN ONE FULL RANGE COAXIAL LINE SOURCE

10'' Ultra compact Line source
Real 450W RMS power capacity (8hours Pink noise)
Tiny A3 paper size format
Unmatched Size/SPL ratio
Only 15kg / 33lbs
16 ohm (passive) for high power density
FIR + DynEQ Presets
Up to 24 speakers per array with 12 times safety
Touring grade Ruberrized PolyUrea black paint finish

Speaker type Coaxial Line source
Power Handling (AES standard) 450W RMS / 1800W Peak
Nominal impedance 16 ohms
Average sensitivity 98dB / 1W / 1m
Maximum SPL (calculated) 130dB RMS / 136dB Peak above 1kHz
Frequency response (-6dB with preset) 95~22000Hz
Nominal directivity (-6dB) 100° (H), Vertical is array dependant
Cabinet material Outdoor grade Baltic Birch Plywood
Cabinet finish Ruberrized PolyUrea Black coating, Acoustic PU foam behind Front grill
Floor monitor use No
Flying hardware Fully integrated, cable-free rigging, 36 positions Aluminum Yoke plate
Mounting hardware Foldable yoke and Ø35mm adapter (optional)
LF 10" coaxial CELTO AcoustiqueE 10CXN400LA with IsoTop waveguide
Woofer Chassis Die Cast Aluminum
Woofer Voice coil diameter 3" / 75mm
HF CELTO Acoustique ACDN44 (in coaxial mounting)
HF RMS power (AES standard) 80W above 1.2kHz
HF Exit 1" / 25mm
HF Voice coil diameter 1.7" / 44mm Silver loaded wire
HF Diaphragm HSP Annular Ring Radiator
Crossover 1.1kHz 2-way passive network
Connectors Genuine NEUTRIK, 2pcs Speakon NL4MP with switch for 1+/-1 or 2+/2- input
Speaker size (HxWxD) 280x420x390 mm
Speaker Weight 15,5kg
Shipping information 20.5kg 390x500x570 mm
Accessories CCA10-SK (Skateboard flightcase) | CCA10-FR (Crossbow flying frame) | CCA10-FYOKE (Foldable Yoke) | CC10-ZBAG (padded bag with Zip) | CPC-70 (pole bar with crank) | CCA-MA (mounting adapter)

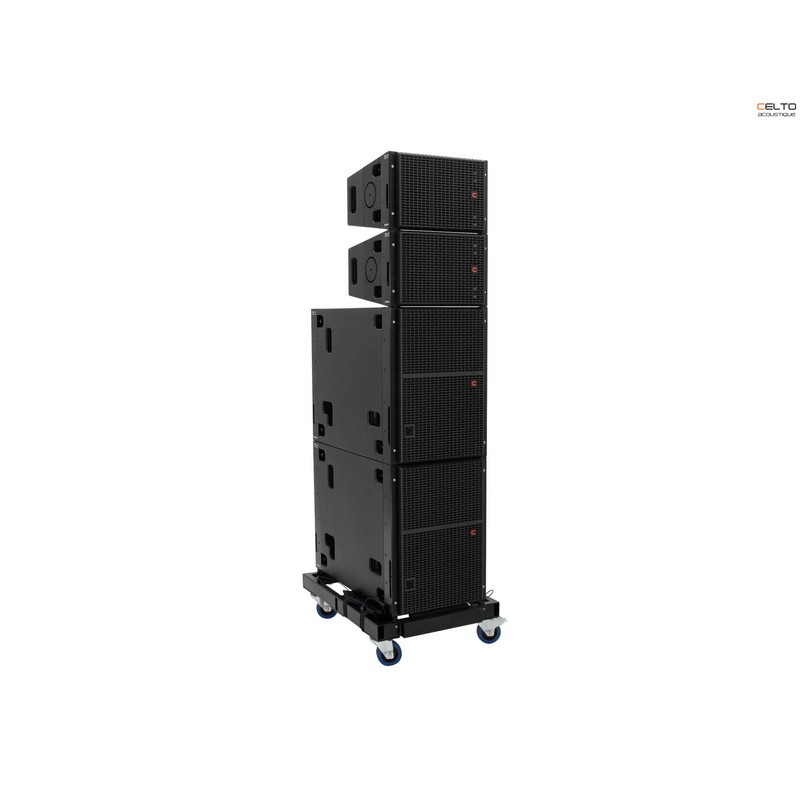

IsoRay10 coaxial passive line source speaker is suitable for near to far field main PA reinforcement in line array topolgy with subwoofer for mobile and permanent

Suitable situations:

  • FoH
  • Live Shows
  • Multi-functional Rooms
  • Auditoriums and theaters
  • Sports Center
  • House of Worship
